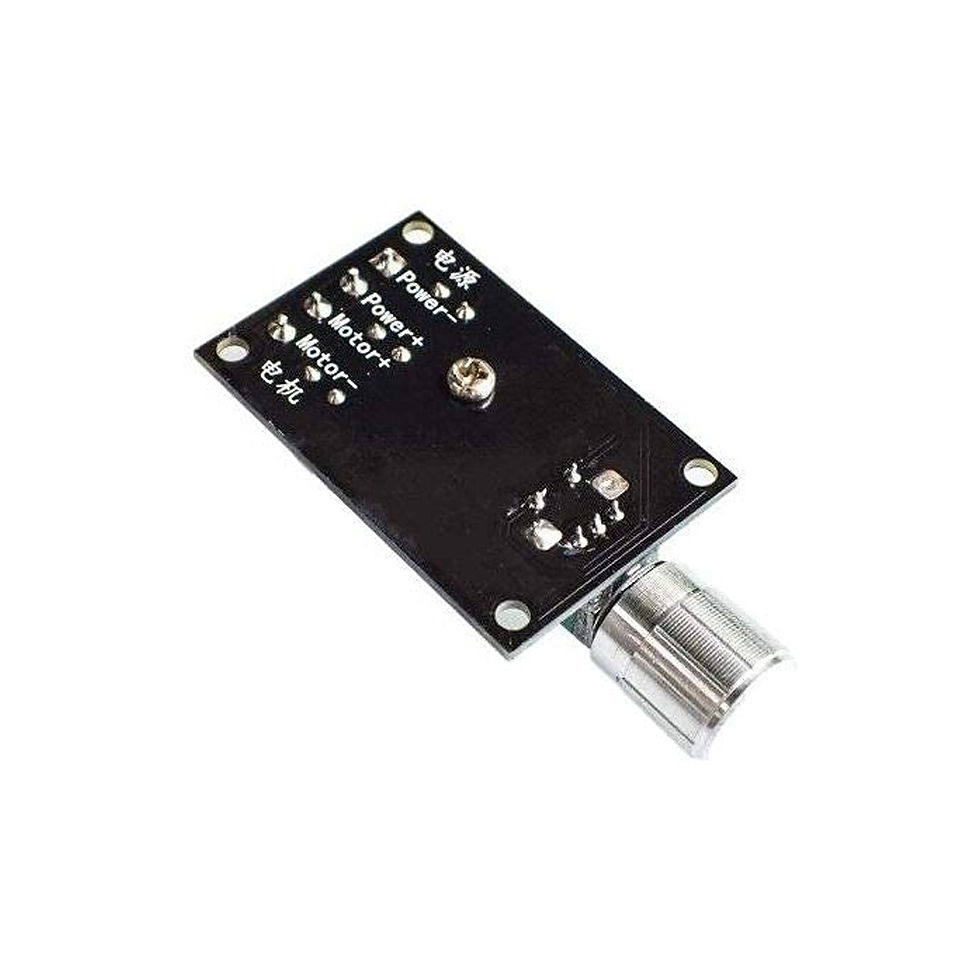

1203B PWM DC Motor Speed Controller 3A – 6V 12V 24V 28V Adjustable Speed Regulator
Control the speed of your DC motor with the 1203B PWM DC Motor Speed Controller Module. Designed for DC motors and compatible DC loads, this compact controller provides adjustable speed control from 0% to 100%, making it suitable for DIY electronics, robotics, science projects, and other motor-control applications.
Key Features
Wide Voltage Compatibility: Supports DC operating voltages from 6V to 28V.
Adjustable Motor Speed: Control motor speed from 0% to 100% using the adjustment knob.
3A Current Capacity: Supports motor loads drawing up to 3A under suitable operating conditions.
PWM Speed Control: Adjusts the motor's effective power for convenient speed regulation.
Compact Design: Small size makes it suitable for DIY projects and space-limited installations.
Easy Connections: Clearly identified power input and motor output terminals.
Multiple Applications: Suitable for robotics, RC projects, DIY electronics, and DC motor experiments.
Product Specifications
Specification | Details |
Product Model | 1203B |
Product Type | PWM DC Motor Speed Controller |
Operating Voltage | DC 6V–28V |
Maximum Current | 3A |
Speed Adjustment Range | 0%–100% |
Length | 65 mm |
Width | 32 mm |
Height | 15 mm |
Weight | Approximately 25 g |
Control Method | PWM |
Adjustment | Manual knob |
Pinout and Connections
Power+ – Connect to the positive terminal of a 6V–28V DC power supply.
Power− – Connect to the negative terminal (GND) of the DC power supply.
Motor+ – Connect to the positive motor terminal.
Motor− – Connect to the negative motor terminal.
Applications
DC motor speed control projects
DIY electronics and science experiments
Robotics and robot cars
RC vehicle projects
Small DC motor applications
Educational and hobby projects
Suitable DC load control within the module's ratings
Important Notes
Use DC power only. Do not connect the module directly to 220V AC mains.
Check the power supply polarity before connecting.
Keep the load current within the 3A rating and ensure adequate cooling where required.
Actual motor speed depends on the motor, load, and supply voltage. A 0% setting may not guarantee complete electrical isolation.
The front knob or connector colour may vary depending on stock availability.
Package Contents
1 × 1203B PWM DC Motor Speed Controller Module (3A)
